Description

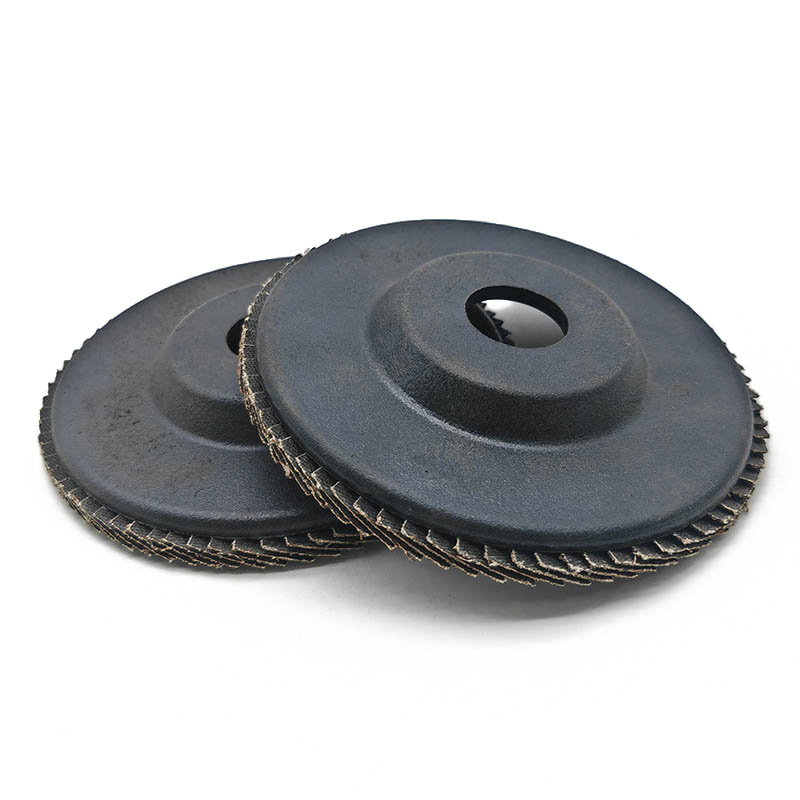

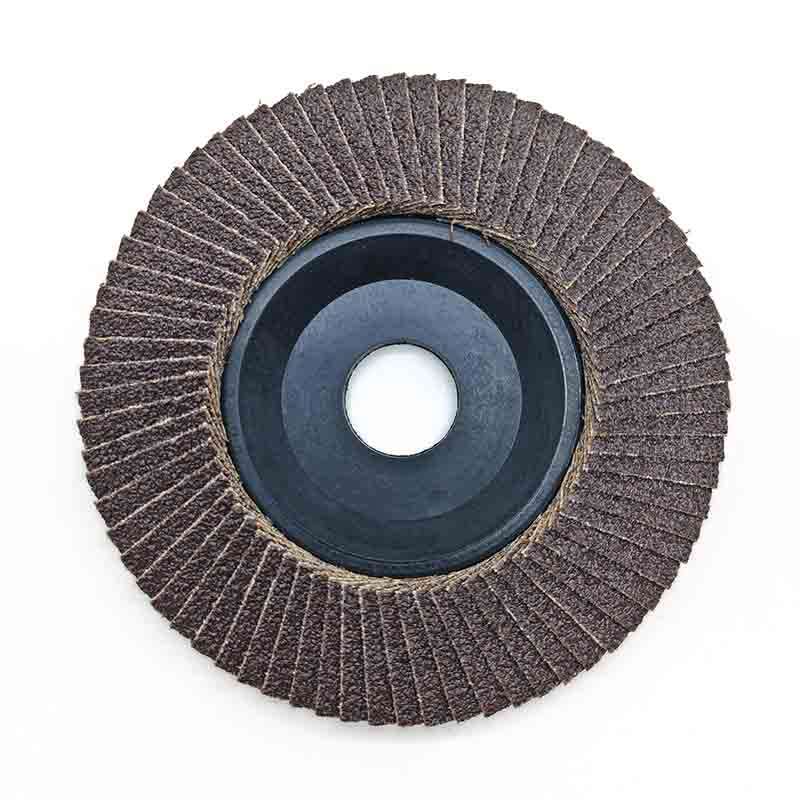

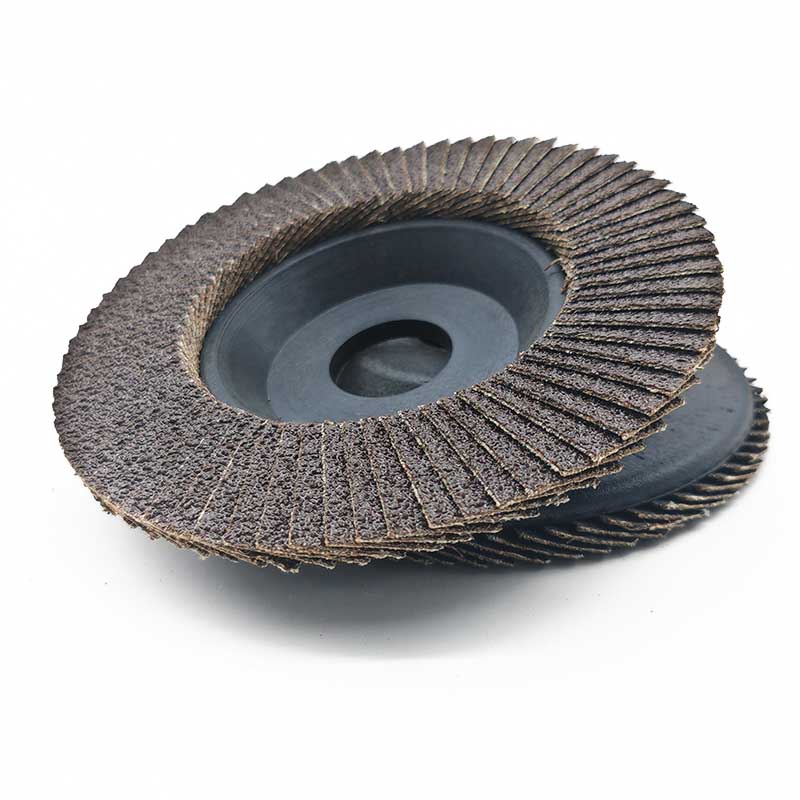

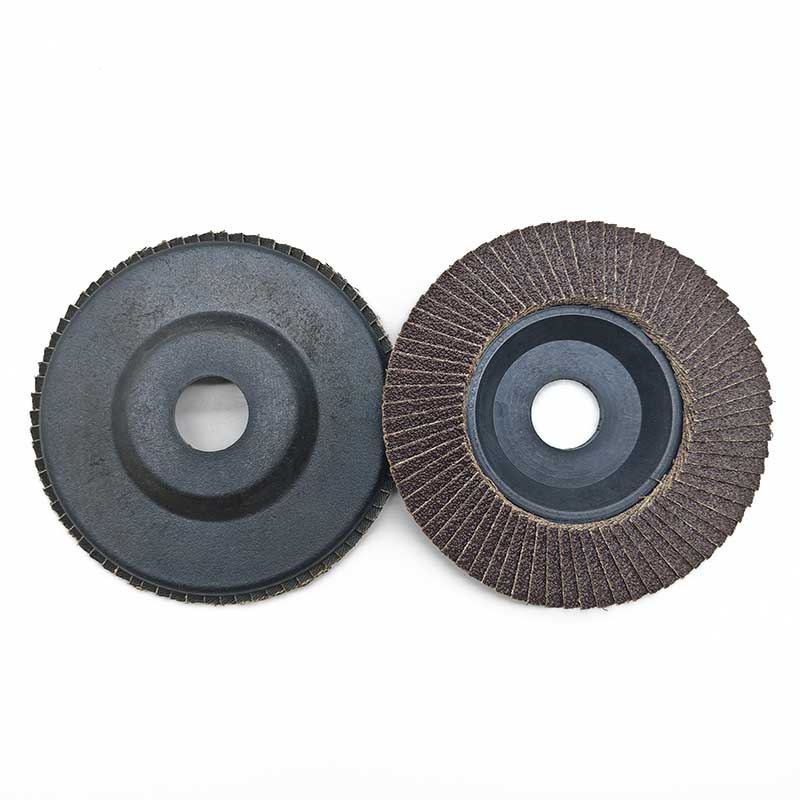

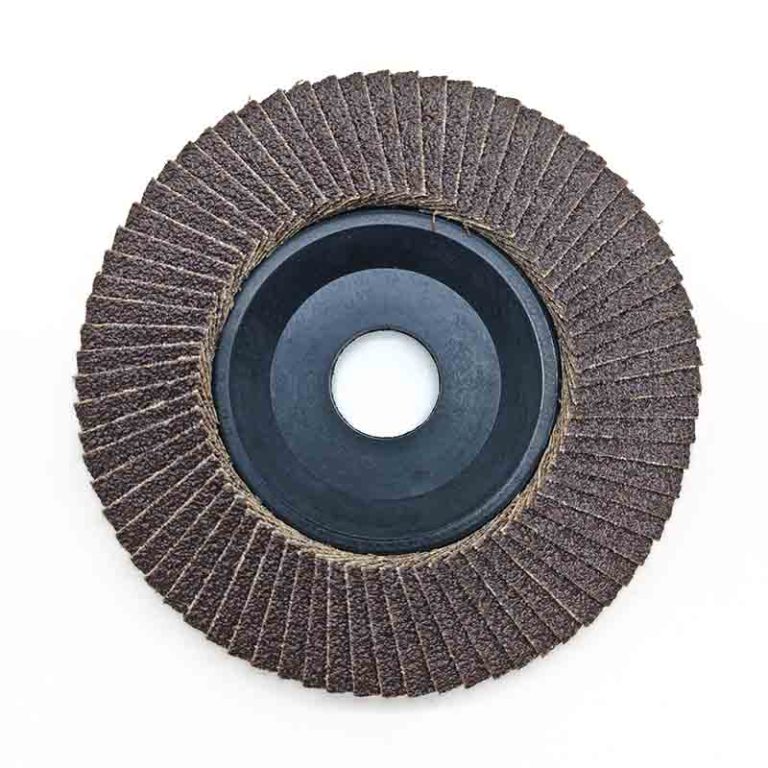

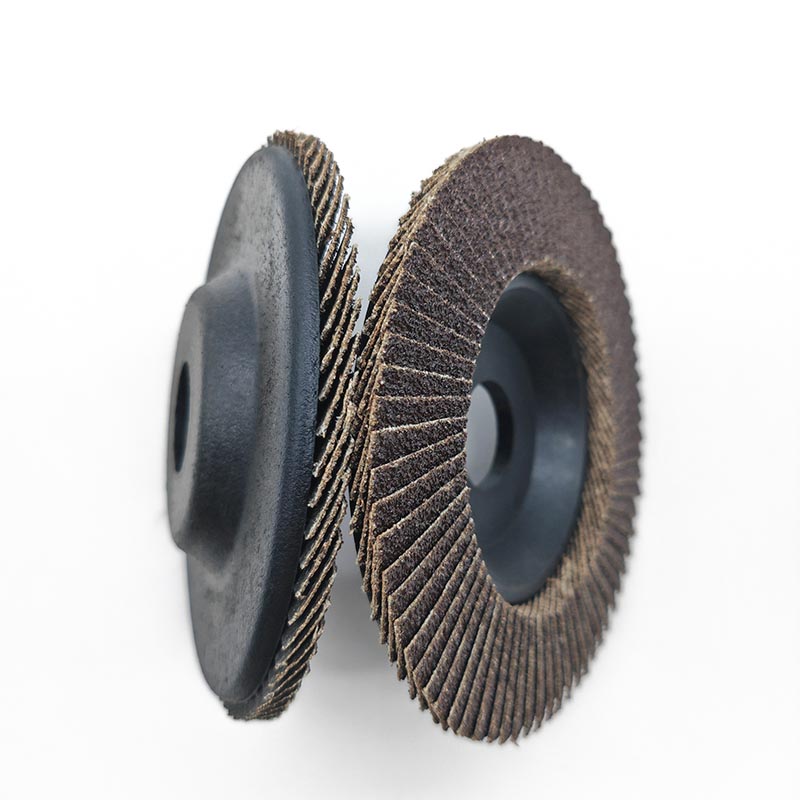

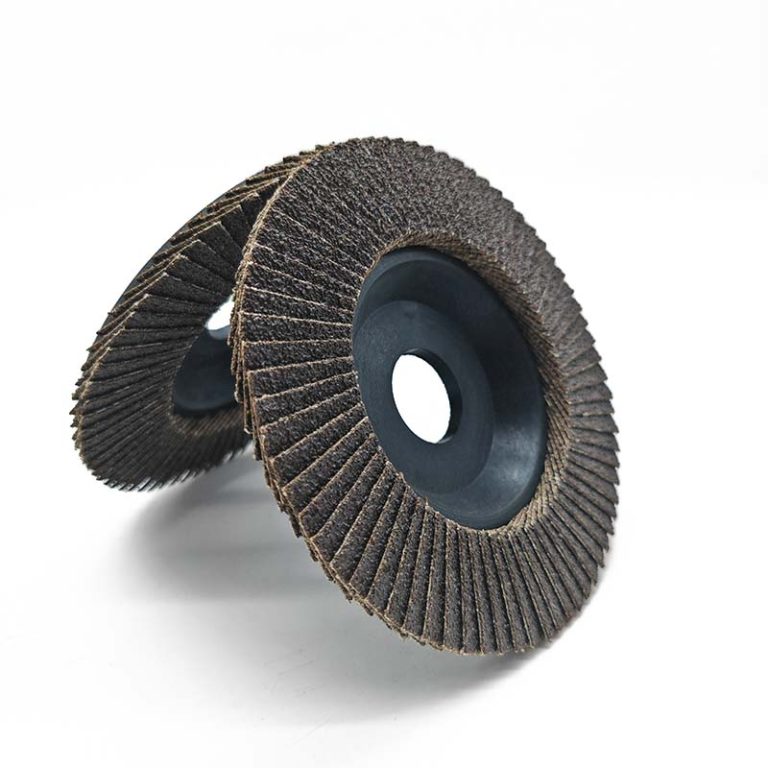

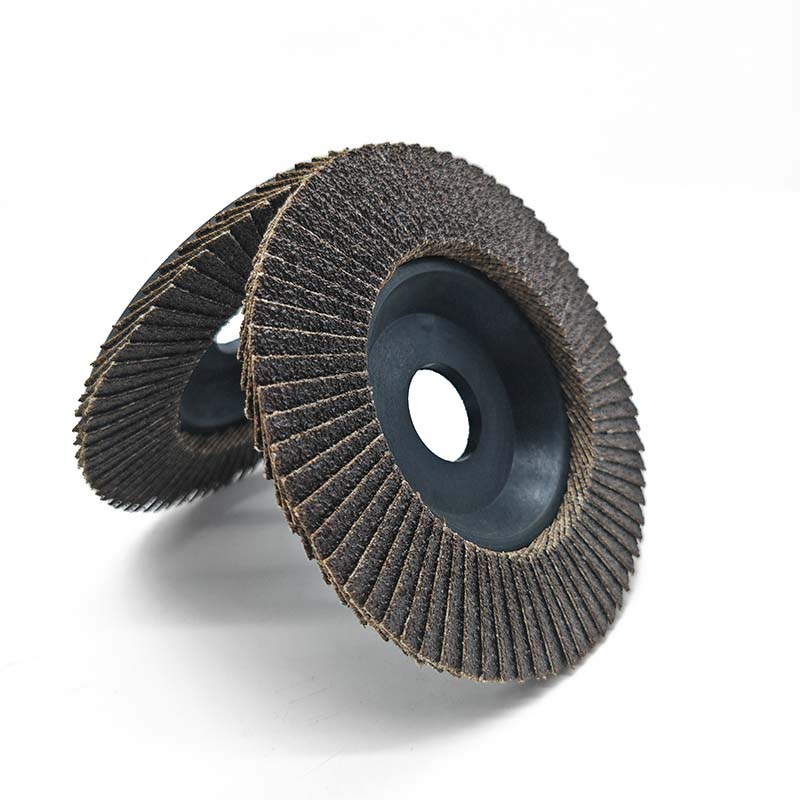

Flap Discs are created by overlapping coated abrasive flaps and adhering them firmly to a back-up plate. As the product is used the abrasive wears down and new layers of abrasive is exposed underneath, which could provide a very consistent finish over the life of the disc.
Applications
Suitable for various surfaces of stainless steel/metal/convex-concave shape/welding line…
Specially be suitable for grinding and polishing in those industries below: shipbuilding/aviation/large mechanical equipment/furniture, building materials…
- Grinding
- Stock Removal
- Edge Chamfering/Beveling
- Weld Blending
- Deburring/Deflashing
- Rust Removal
- Cleaning and Finishing
Features & Benefits
| FEATURES | BENEFITS |
| Calcined Aluminum Oxide | Sharp and wear-resistant Good performance – Price ratio |

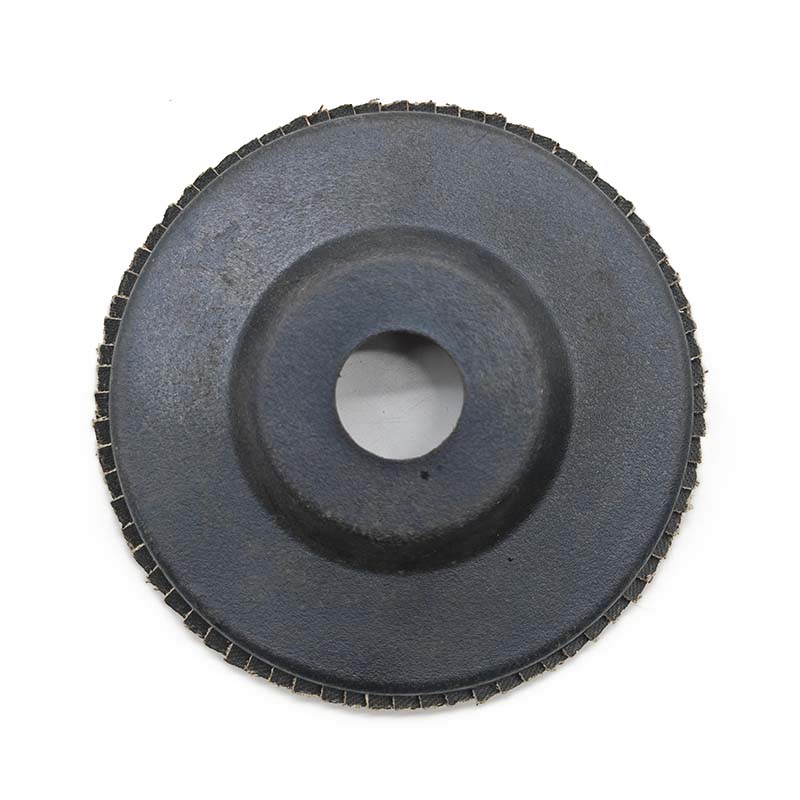

| Nylon Plastic Backing Plate Chosen | The plastic trimmable backing on these flap discs allows you to use up more of flaps, significantly extending the service life of each discEuropean Safety Standard Allowed |
| Lightweight Design | Could reduce operators fatigue |
| One-step grind and finish | Could reduce down time and finishing costs |
| T27 flat shape | Fit for flat surface and will produce a more consistent finish |
Specification

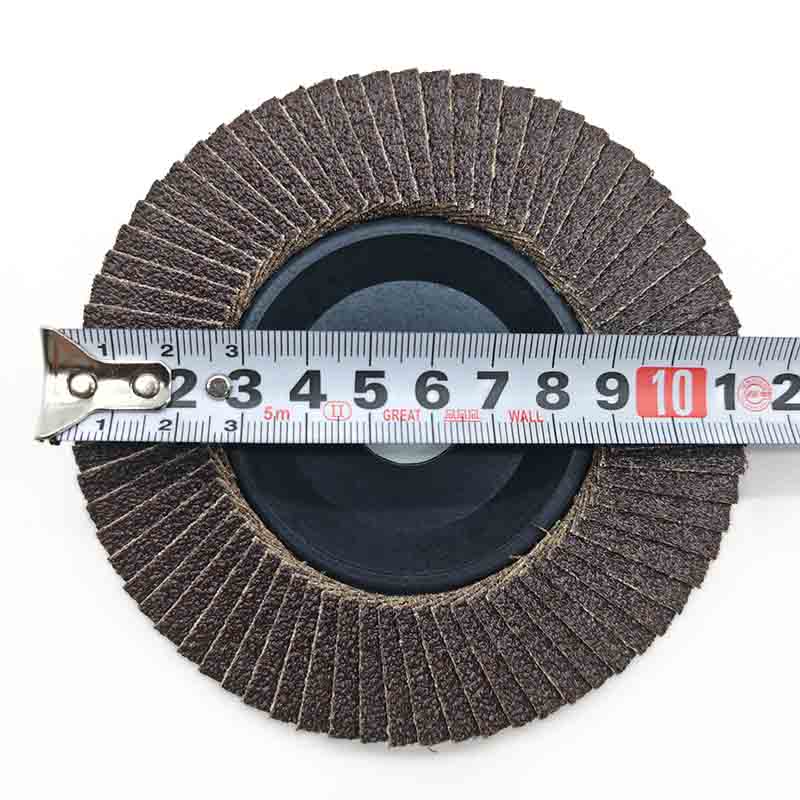

| Size(D x H) | Available Grit | Max.RPM | STD.PKG. |
| 100mmx16mm | P40~P400 | 15,300 | 10 |
| 115mmx22mm | P40~P400 | 13,300 | 10 |
| 125mmx22mm | P40~P400 | 12,000 | 10 |
| 150mmx22mm | P40~P400 | 10,200 | 10 |
| 180mmx22mm | P40~P400 | 8,600 | 10 |
