Available Grit Size
24-80
(P80)
Suitable for removing low-quality material surfaces, scratches, burrs, etc
100-150
(P100, P120)
Suitable for removing low-quality material surfaces, scratches, burrs, etc
180-320
(P180, P240, P320)
Suitable for removing low-quality material surfaces, scratches, burrs, etc
400-800
(P400, P600，P800)
Suitable for removing low-quality material surfaces, scratches, burrs, etc
1000-1200
Suitable for removing low-quality material surfaces, scratches, burrs, etc
Product Descriptions

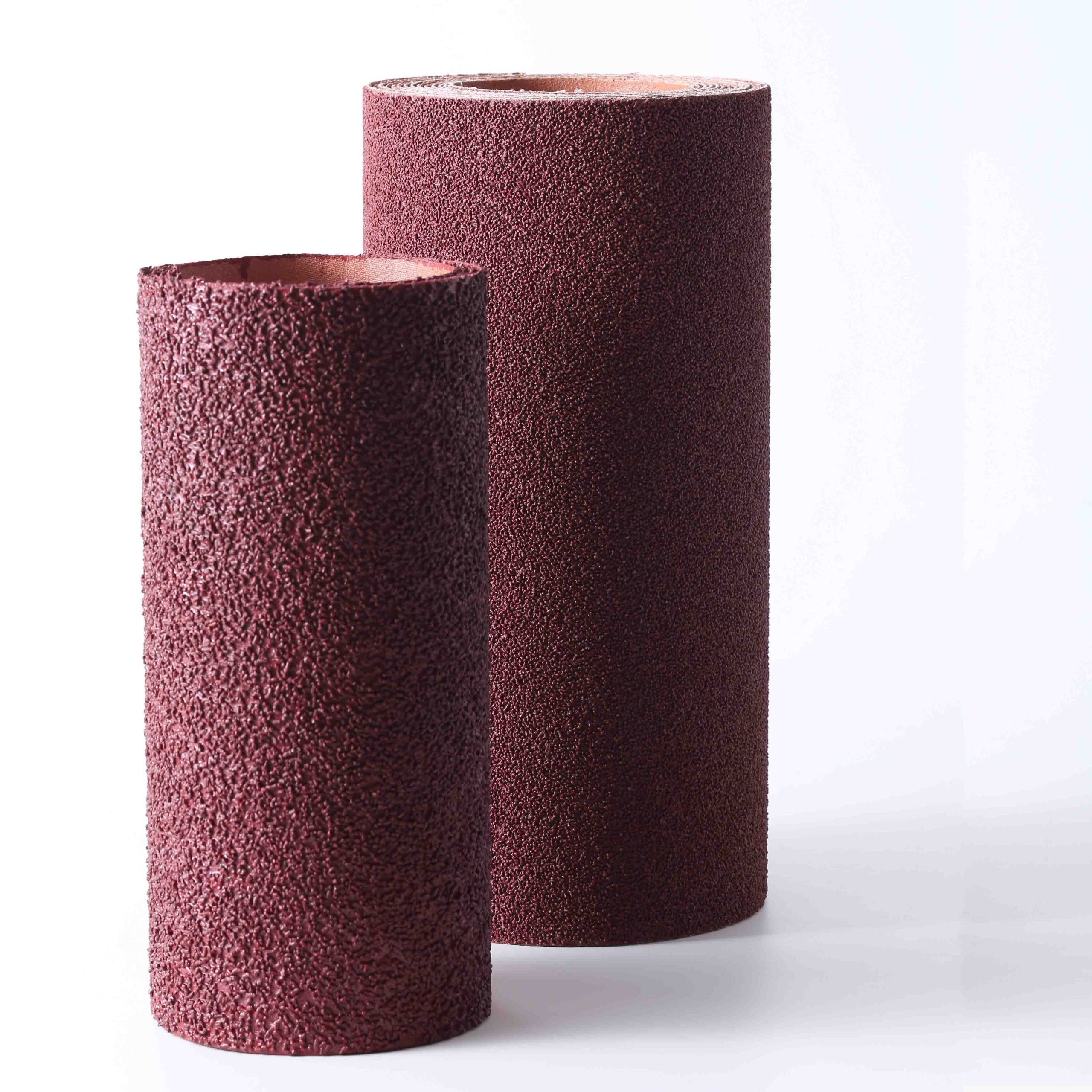

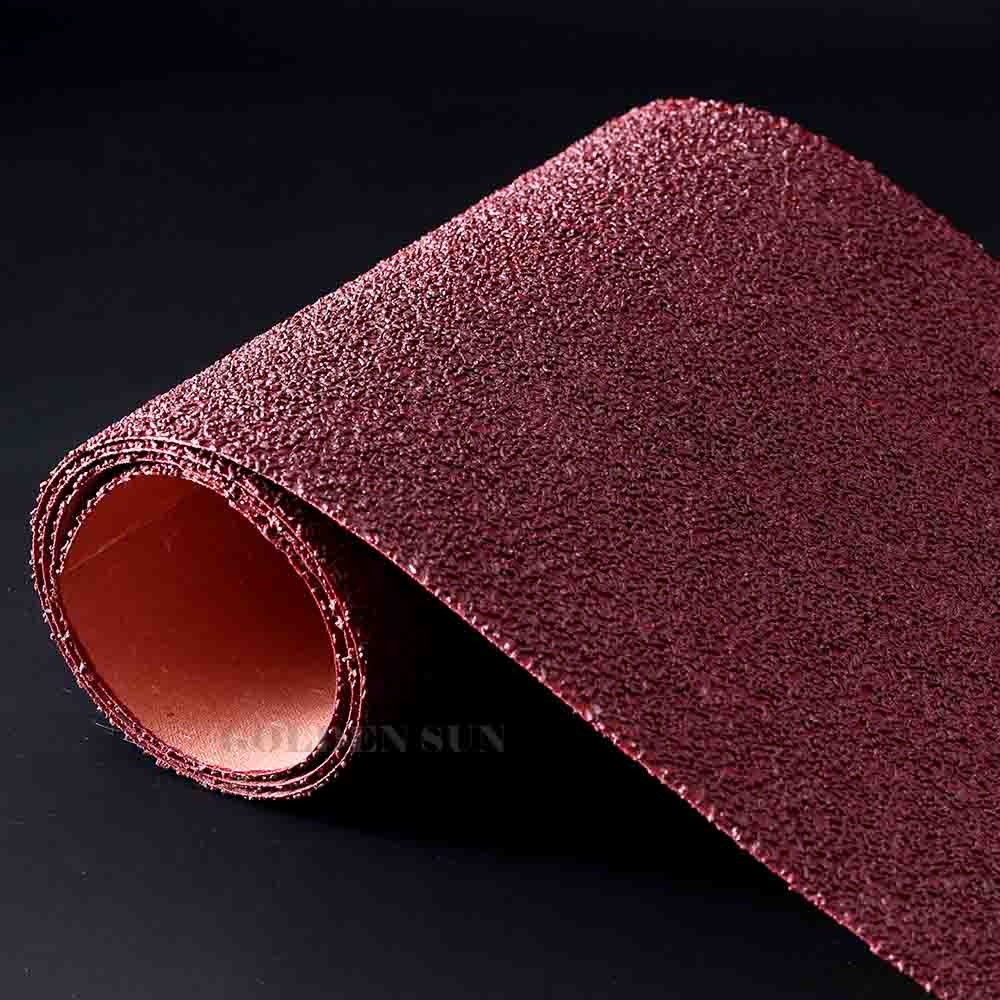

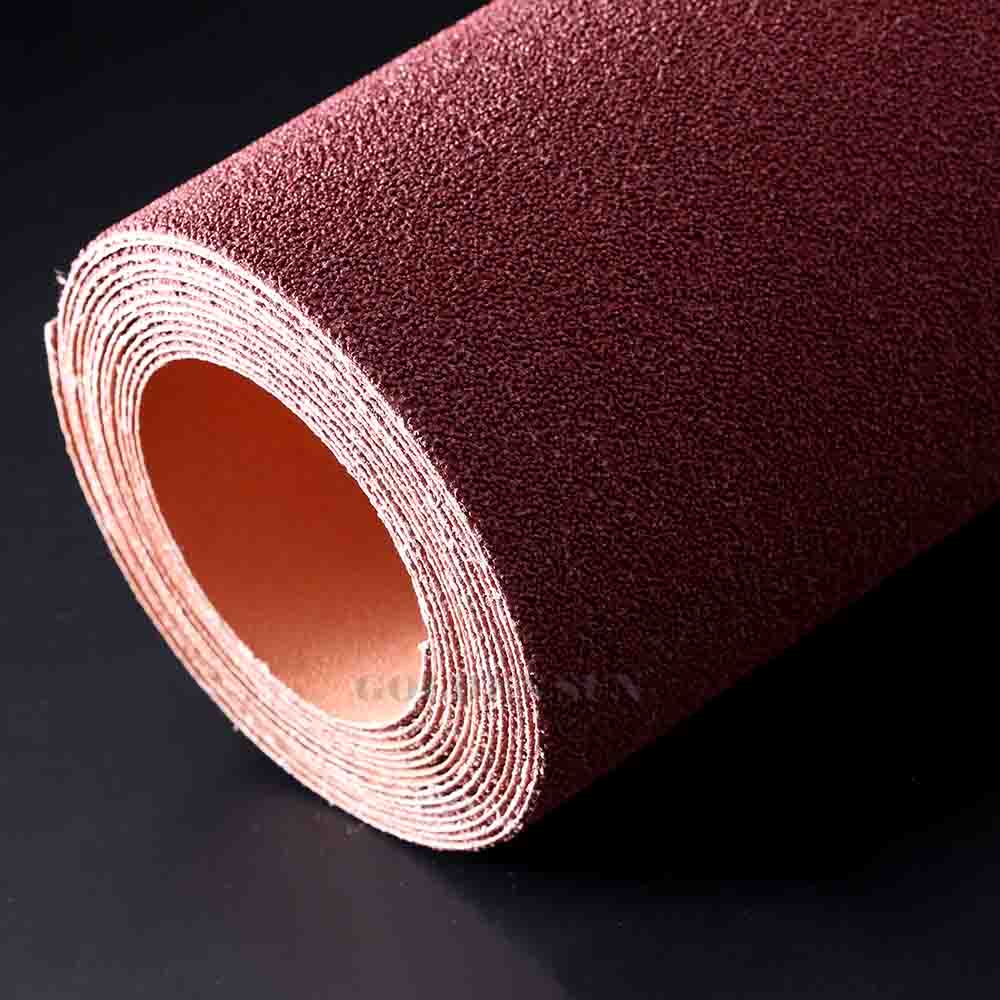

Compact Grain Abrasive Cloth provides a uniform finish.
Unlike conventional abrasive cloth that dull quickly, Compact Grain Abrasive Cloth provides a consistent finish over an extended period of time.
Compact Grain Abrasive is coated with granulate and due to the special design, it always has a coarser appearance than conventional abrasive.
Each granulate grain is a fixed unit in which numerous abrasive grains consisting of Al2O3 or SiC are bound to each other.
If a layer of abrasive grain is worn out by the grinding force, a new layer will expose.
| Model No. | Minerals | Backing | Use(Dry or Wet) | Grit Range |
| DAP53 | A/O Compact Grain | Polyester | Wet | P80~P800 |
| DCP32 | SIC Compact Grain | Polyester | Dry | P80~P1000 |
| DCP51 | SIC Compact Grain | Polyester | Wet | P80~P1000 |
| DCP53 | SIC Compact Grain | Polyester | Wet | P80~P1000 |
| DCJ32 | SIC Compact Grain | Polycotton | Dry | P80~P800 |
Advantage
| Features | Benefits |
|---|---|
| Thanks to continuous creation of new cutting edges | Consistent Stock Removal Throughout Entire Product Life |
| Due to constant grinding performance and significantly less frequent changing of abrasives | More Even Scratch Depths And Thus More Even Workpiece Surfaces |
| <<< Constant self-sharpening thanks to the granulate structure; <<< Due to the high reserve of abrasives of the self-sharpening compact grain; <<< Due to excellent adhesion of the grain to the backing material; | More Durable Than Conventional Abrasives / Very Long Service Life |
Material Usage
- This multi-layered construction is effective in mechanical applications including robotic grinding, flat grinding, centerless grinding, as well as off-hand and disc polishing.
- Cold Strip Coil, Alloy (CrNi, FeNi), Non-Ferrous Heavy Metal, General Metal, Repair Industry, Automotive Body,etc.
Applicable to
